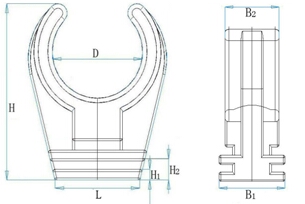

Name: Single plastic clip M6 Code: 302 Description: * For copper pipes                    * For heating pipes * For basin pipes                      * For pvc pipes -Technical parameter Recommended Loading: 12mm-22mm                            Max loading:100n 28mm-42mm                            Max loading:130n Working tmp                              <104 Degree Deformable temp                     165 Degree  (1.82mpa) Material                                        PPR/PA6 Circumstance                             Halogen free Brass socket                               M6 For profile                                   20/10  &  27/18 Note: Tappling screw should be fully into socket    CODE    SIZE (mm)  INCH L H H1 B1 B2 PCS /BOX N.W. /PLT G.W. /PLT VOL /PLT PSP-8 8 - 9.5 18.3 2 16.5 13.5 100 175 210 1 PSP-10 10 - 12 20.6 2 16.5 13.5 100 200 235 1 PSP-12 12 1/4" 14.5 23 2 16.5 13.5 100 220 275 1 PSP-14 14-15 3/8" 17.5 26.3 2 16.5 13.5 100 276 335 1 PSP-16 16-18 - 20.5 31.6 2 16.5 13.5 100 260 315 1.1 PSP-20 20-22 - 19 38 2 16.5 13.5 100 208 250 0.9 PSP-25 25 - 20 41.3 2 16.5 13.5 50 225 290 0.9 PSP-28 28 - 21.5 45 2 16.5 13.5 50 220 285 1.1 PSP-32 32 - 26.8 48.4 2 16.5 13.5 50 270 319 0.9 PSP-35 35 - 33 51 2 16.5 13.5 50 300 365 0.9 PSP-42 42 1 1/4" 40 59 2 16.5 13.5 50 440 505 0.9
