Location:HOME > Products > Duct Accessories > Double plastic clip M6Products

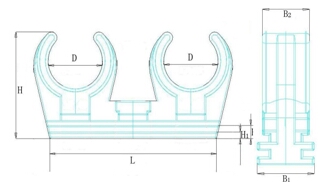

Name: Double plastic clip M6 Code: 303 Description: * For copper pipes                    * For heating pipes * For basin pipes                      * For pvc pipes -Technical parameter Recommended Loading: 12mm-22mm                            Max loading:100n 28mm-42mm                            Max loading:130n Working tmp                              <104 Degree Deformable temp                     165 Degree (1.82mpa) Material                                        PPR/PA6 Circumstance                             Halogen free Brass socket                               M6 For profile                                   20/10  &  27/18 Note: Tappling screw should be fully into socket    CODE SIZE (mm) INCH L H H1 B1 B2 PCS /PLT N.W. /PLT G.W. /PLT VOL /PLT PTP-12 12 1/4" 42 23 2 17 14 18000 192 245 1.1 PTP-14 14-15 3/8" 52 26 2 17 14 18000 235 283 1.1 PTP-16 16-18 - 53.3 32 2 17 14 18000 287 336 1.1 PTP-20 20-22 - 62.5 38.5 2 17 14 12000 248 192 0.9 PTP-28 28 3/4" 73.5 45 2 17 14 9000 250 300 1.1
