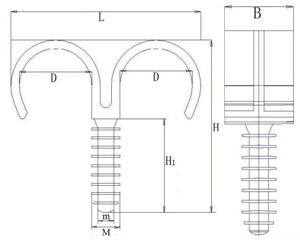

Name: Double Fix Ring Code: 305 Description: * For flexible pipes              *For soft pipes * For cables                         * For pvc pipes -Technical Parameter Working                                Max Loading:150n Breaking                               Max Loading:450n   Working Temp                    -5 ~ 70 Degree Deformable Temp             165 Degree (1.82mpa) Material                                 PA6 Circumstance                      Halogen Free Pin Diameter                       M8 Color Option                        Grey & Black Note: Pins should be fully into fixing hole CODE SIZE (mm) INCH   L     H   H1  m M   B   N.W. /PLT G.W. /PLT VOL /PLT PTF-16 16-17 - 43.1 47.4 31.5 5.5 10 20.2 166 180 1.09 PTF-18 18-19 3/8" 49.8 50.7 31.5 5.5 10 20.2 156 170 1.09 PTF-20 20-21 - 53.7 51.7 31.5 5.5 10 20.8 168 182 1.07 PTF-22 22-23 1/2" 58.2 54.5 31.5 5.5 10 20.2 145 160 1.07 PTF-25 25-26 - 67.9 57.3 31.5 5.5 10 20.2 155 168 1.07 PTF-28 28-29 3/4" 70.8 60.8 31.5 5.5 10 20.2 188 202 1.12
