Location:HOME > Products > Others > U CHANNELProducts

Name: U CHANNEL
Code: 406-U
Description:

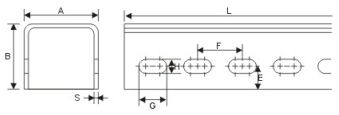

CODE		SIZE		A		B		S		E		G		H		F		L		Weight
				MM		MM		MM		MM		MM		MM		MM		MM		Kg
406U-1		30x30x3		30		30		3		12		20		10		40		2000		3.25
406U-2		40x40x3		40		40		3		17		25		12.5		40		2000		4.43
406U-3		40x40x4		40		40		4		15		25		12.5		40		2000		5.66
406U-4		50x50x4		50		50		4		20		25		12.5		40		2000		7.54
